3. ACV-16051 Auto parts inspection and screw inspection

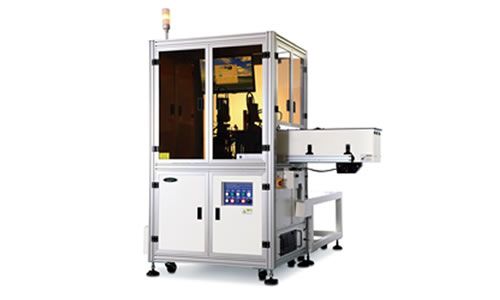

ACV-16051 Auto parts inspection and screw inspection

Steel dial inspection machine

• Designed with metal platform
• Suitable for fastener size between M3~M20 and auto parts
• Iinspection spec: auto parts, larger screw and ODM special customize size

Inspection criteria

Our AOI machines are different from old style index plate, continues rotating platform operating smoothly, avoid the problems of bumping and slow inspecting speed occurred on go-and-stop index style machine.

• Is used for inspection small and medium diameter headed fasteners at a high rate of speed.
• Continuous rotating inspection design, with fast inspection speed and high precision

Auto parts inspection and screw inspection

Product Features

• Application: Auto parts, screw, bolt
• Inspection Range: M3-M12, length 120mm
• Inspection Speed: 300~900 pcs/min depending on the actual feeding speed
• No. of CCD Camera : 1-6 cameras
• Professional inspection software: Graphic teaching mode, simple operation interface, easy to learn and use
• Options: Eddy current device / telecentric lens / 360-degree camera / automatic material supplementing system / paper box packing machine / OCR character recognition system

Inspection criteria

fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./ neck length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / etc

Specification

Series No: ACV-16051
Appling component: Auto parts,larger fasteners
Diameter of component: M3~M12 standard
Length of component: 120mm
Head Width: 25mm
No. of CCD: 3 CCD
Vision system: Highly magnified CCD camera / light source sets
Software: Accuvision Pro-V II version 2.5
Supply and output: Feeding bowl / linear track / sorting bins (Good/NG)
Speed: 400~700 pcs/min
Power: AC 220 - 240V / 50Hz
Mainframe: Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens
Machine spec: 1065mmL× 860mmW× 1,855mmH
